20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System
Détails sur le produit:
| Lieu d'origine: | Shenzhen, en Chine |
| Nom de marque: | ESTEL |
| Certification: | IP55 |
| Numéro de modèle: | Pour l'utilisation de la méthode suivante: |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièces |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | boîtier en bois avec palettes |
| Délai de livraison: | 35 à 45 jours |
| Conditions de paiement: | T/T, Western Union |
| Capacité d'approvisionnement: | 3000 |
|
Détail Infomation |
|||
| Réfrigération: | Ventilation naturelle | L'espace d'utilisateur: | 20U |
|---|---|---|---|
| Capteurs: | Sensor de porte (facultatif) | La porte: | Une entrée principale |
| La charnière: | La charnière intérieure | Fermeture: | Serrure à trois points anti-vol |
| Mettre en évidence: | Armoire à sol extérieure à ventilation naturelle,20U Armoire montée sur le sol extérieur,Fermeture anti-vol de télécommunication extérieure |
||
Description de produit

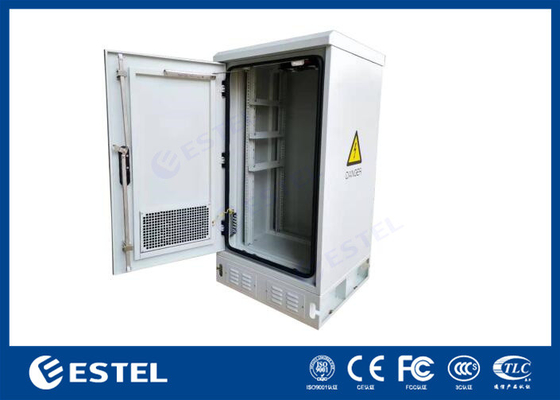

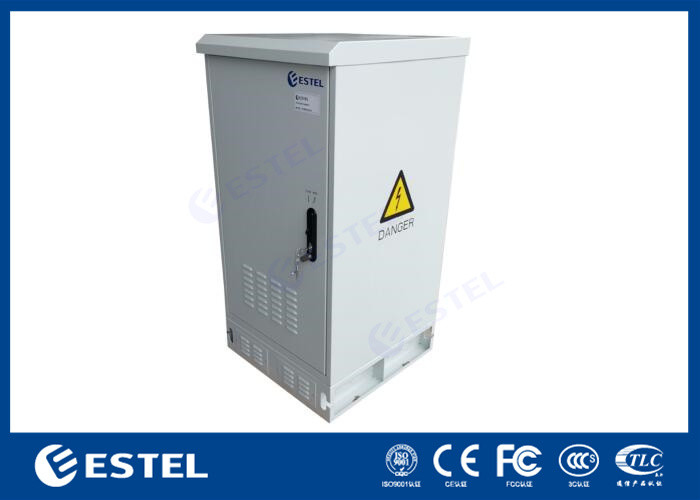

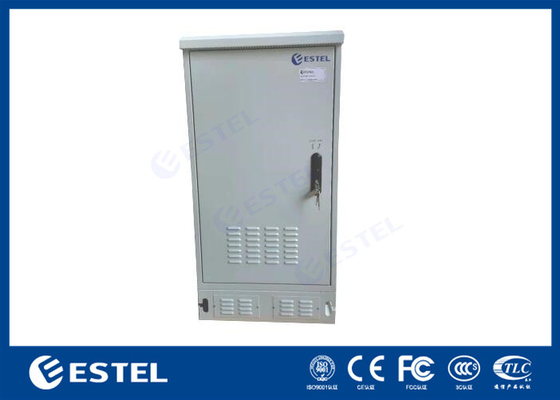

20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Application:
The outdoor cabinet can protect customer’s equipments from damage and extreme weather conditions.
The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments, power system and batteries.
It can be widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Technical Parameters:
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6060120A-20U |
| Protection Level | IP55 | |
| External Dimension | H1200mm×W600mm×D600mm | |
| Internal Space | 19 inch 20U. | |
| Material | Galvanized steel, single wall without insulation. Wall thickness: 1.2mm. | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Door | One front door | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Others | Door sensor, LED light with switch | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Features:
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling can add Fans or air conditioners, installed on cabinet, with filter, convenient for maintenance, cleaning and replacement
Cabinet Diagram:
