IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface

IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface

Détails sur le produit:

Lieu d'origine: Shenzhen, Chine (pays continental)
Nom de marque: ESTEL
Certification: ISO9001, IP55
Numéro de modèle: Le nombre d'heures de travail

Conditions de paiement et expédition:

Quantité de commande min: 1
Prix: negotiable
Détails d'emballage: Étui en bois
Délai de livraison: 10 jours de -15working
Conditions de paiement: T/T, Western Union, Paypal, etc.
Capacité d'approvisionnement: 8, 000 ensembles par mois
meilleur prix Contact

Détail Infomation

Matériel: Mur en acier et double galvanisé avec l'isolation thermique Entrée d'alarme: 3 canaux, entrée à connecteur sec
Niveau de protection: Pour la protection contre la corrosion Preuve: antipoussière, sunproof et antipluie
Couleur: Blanc Sortie d'alarme: 1 canal, sortie connecteur à sec
Taille extérieure: 700 mm × 420 mm × 250 mm ((H × W × D) Interface: RS485/232
Mettre en évidence:

Boîte de surveillance intelligente à 3 canaux

,

Boîte de surveillance intelligente à courant continu 12 V

,

Boîte de surveillance intelligente à interface RS485

Description de produit

IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface



3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Overview

The smart surveillance box can be connected with network switch, IP camera, flash lamp, alarm lamp, infrared detector or other equipment. It can managed all connected equipment and with rich management function. Work with the platform software, It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down

3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Feature

  1. Provide 1 channel AC power input.
  2. provide 3 channel DC 12V, can remote control and detect output of voltage and current.
  3. With 8*10/100/1000M PoE downlink ports and 2*10/100/1000M SFP uplink ports.
  4. Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
  5. The box body adopts waterproof(protection level IP55), anti-rust treatment, suitable for long outdoor use;
  6. Supports platform software, supports maps, multi product networking, remote control, alarm management, operational dimension, statistical analysis, etc.



3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Specification



Item



Specification



AC power IN AC 100~240V, 50/60Hz, 10A
DC12V output

DC12V output 3 channels, 3A, green terminal slot;

Support for remote control of single channel;

Support shows the single circuit voltage and the current value;

Network switch

1~8 ports: 10/100/1000Base-T 30W PoE RJ45(IEEE802.3af/at)

9~10 ports: 1000Base-X SFP

Working mode:

Default mode: normal switch mode.

VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control.

RS485 Standard RS485 interface
RS232 Standard RS232 interface
10/100 Network port 1*10/100 Base-TX
Alarm input

3 channels, dry-connector input

channel 1 is default for the door open/closed detected;

Alarm output 1 channel, dry-connector output
Booster 12V to 48V, can adjust voltage
Operating temperature -20℃~70℃
Storage temperature -40℃~85℃
Humidity 0~95%(no condensation)
Size(H×W×D) 700mm×420mm×250mm
Material metal
Colour white
Net weight 20kg

Diagram

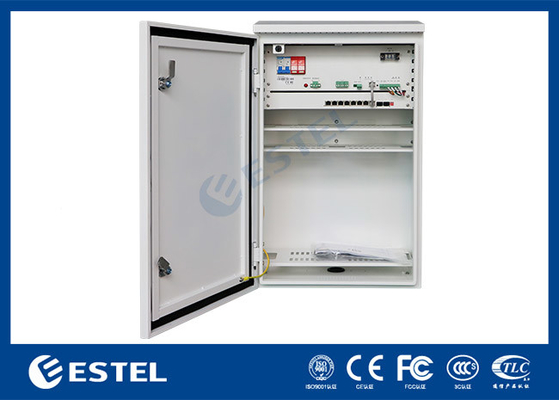

IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface 0

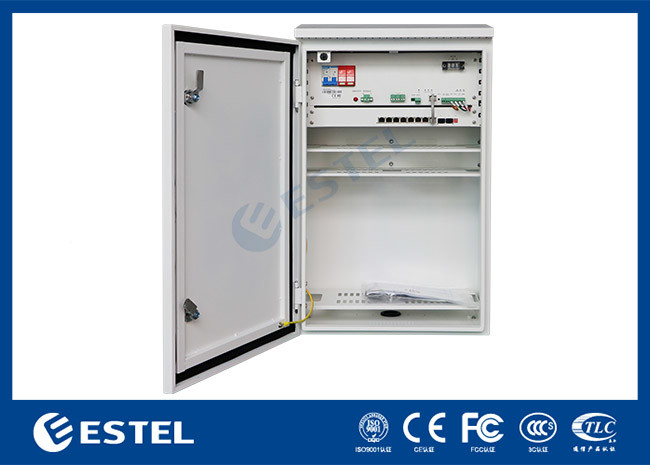

IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface 1

Product details

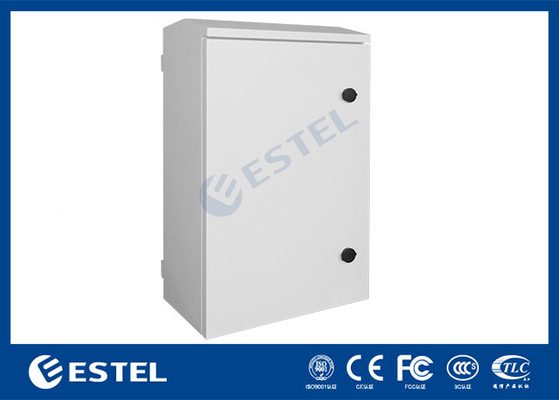

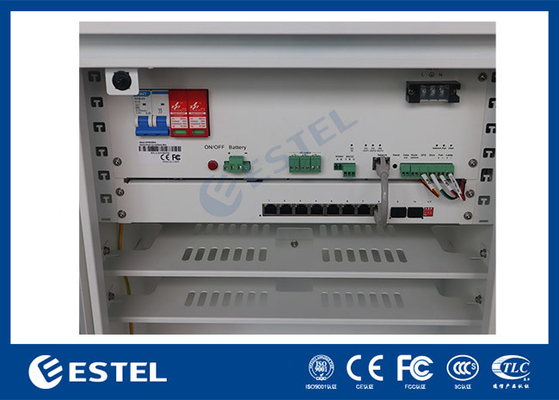

IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface 2
